TaylorMade M4 Driver Review

TaylorMade M4 Driver: You need to know

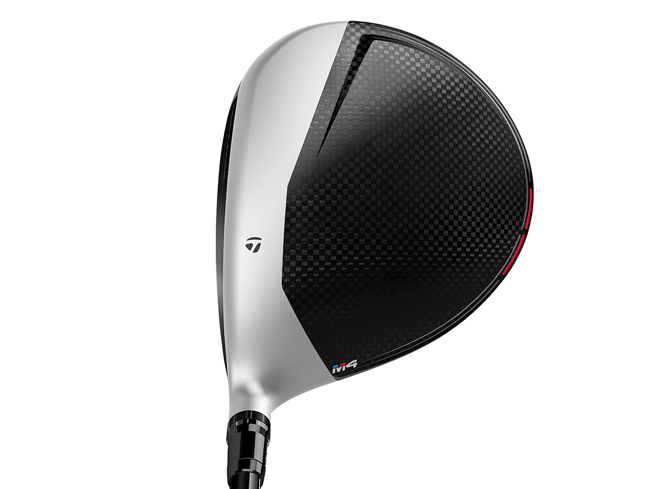

All the same Twist Face and Hammerhead tech as the M3 but with 41g (up from 22g in the M2) of weight positioned in the rear weight pad to max out forgiveness. Geocoustic engineering means the recessed sole frees up volume (to create a bigger more forgiving footprint) and produces higher frequencies to sound and feel better. A five-layer carbon crown and matte silver paintjob give an indisputably TaylorMade look.

Everything you need to know about driver shaft weight. And why it’s now more important than flex.

TaylorMade M4 Driver: We say

TaylorMade’s new Twist Face tech has commanded tons of column inches and You Tube videos views, but the first thing you’ve got to realise is the M4s face (like the M3s) is nowhere near as twisted as the graphics you’ve seen. Sit the M4 down alongside an M2 and the untrained eye will struggle to spot the difference, which trust us is a really good thing. All three testers found M4 generated higher levels of backspin, which is likely down to 41g of mass being located so far back in the head, meaning it’s well worth your time to select a shaft carefully as our test pro picked up 13 yards of carry distance by finding a good match.

They’re only tweaks but we like the new silver matt colour and how the carbon fibre crown joins the titanium leading edge is more subtlety shaped. After plotting where every impact occurred during our drivers test (for all three testers) we’re able to prove Twist Face launched shots from the high-toe and low-heel faster with less side spin (they also flew 5-6 yards further) than the competition. It doesn’t mean you’ll hit every fairway but we’d always like any advantage stacked in our favour.

Does TwistFace actually work?

TaylorMade M4 Driver: Verdict

World #1 Dustin Johnson won on his first tournament outing of 2018 with an M4 in his bag, giving the club instant tour validation. It produced very solid distance and forgiveness numbers for our testers without quite topping the pile. Experience tells us along with the Callaway Rogue and Ping G400 MAX it will be amongst the best-selling drivers of 2018.

See our Best 2018 Driver Test here

Battle of the 2018 driver faces

TESTED: TaylorMade M4 vs Callaway XR Speed driver

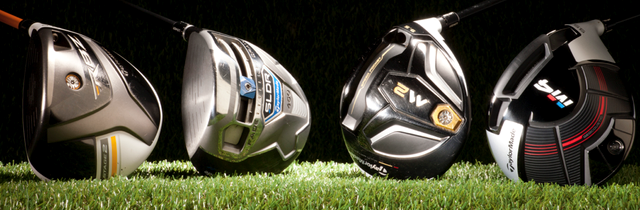

OLD vs NEW Drivers Review: M4 vs M2 vs SLDR vs RBZ

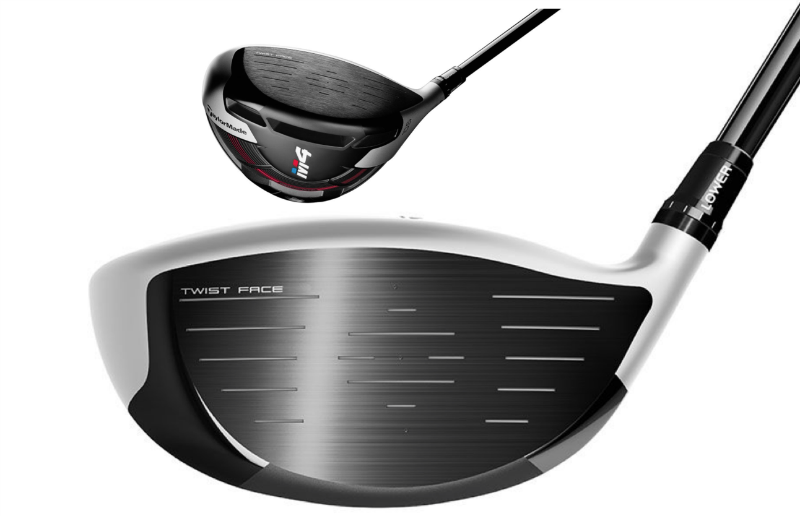

TaylorMade M4 Driver: Twist Face

The new TaylorMade M4 Driver uses the brands new innovative face design technology ‘Twist Face’, which in its simplest form has been created to achieve longer, straighter shots for the golfer.

By looking at data and analysing what the golfer does, TaylorMade found the most-common miss-hits were low-heel or high-toe shots, but that the bulge-and-roll concept used in previous drivers wasn’t rectifying this in the proper way. As a result, Twist-Face was born to correct the ball-flight on those miss-hits, allowing for straighter, and therefore longer, shots.

Both the TaylorMade M3 driver and TaylorMade M4 driver have Twist Face technology, where the high toe has been ‘twisted’ open and the low heel closed with less loft to help correct the face angle for golfers biggest misses.

Brian Bazzel, VP of Product Design, said: “Ultimately what you’re trying to do is counteract what’s happening in the head and the effect that’s created. With Twist-Face, you’re going to go from 14 yards from low heel to high toe to essentially 3 yards. We talk about game changing innovations… this is where it’s at.”

“We twisted the toe back to add a little bit more loft to get it to go a little bit less left. On average that shot is finishing left of target, so you need it to be slightly more open. Same thing on the low heel; we’re trying to kill some of the spin so we de-lofted it (the heel) a bit more and we’re trying to get it to go less right so we bring it back, close it a little bit more and twist that face so we counteract the shots the golfers are doing, not what a robot would do”

Read all about Twist Face here

TaylorMade M4 Driver: Hammerhead slot

It was engineered to work in combination with Twist Face and Inverted Cone tech to deliver max ball speed across a larger area of the face. By dividing the Speed Pocket into zones, TaylorMade was able to increase its overall length in the new M4 driver from 82mm to 100mm – a 22% increase.

Additionally, it allowed for the creation of a larger flexible centre zone, designed to increase ball speed on low face impacts and drop unwanted backspin. By using the new ribs at enther end of the slot, engineers were able to decrease the thickness and weight allowing for a more flexible face.

Brian Bazzel, VP of Product Design, said: “A slot design or a speed pocket helped us create ball speed but it also let us drop the spin that was created with those designs so we could get high launch and low spin. This is one of the competitive advantages of TaylorMade drivers and fairway woods.”

“How the Hammerhead became different is that we used the centre section, we lengthened that slot and we used the centre section much like a speed pocket. Where it is different is by creating more stability on the heel and toe, we’re able to make the face 20% thinner, and lighter.”

“By doing that you create you get more flexibility, especially high on the face on high heel or high toe, so we’re trying to expand the sweet-spot. Right now we’ve been up against the USGA, R&A limit as it relates to ball CT, and now we’re trying to expand that to as large an area as possible.”

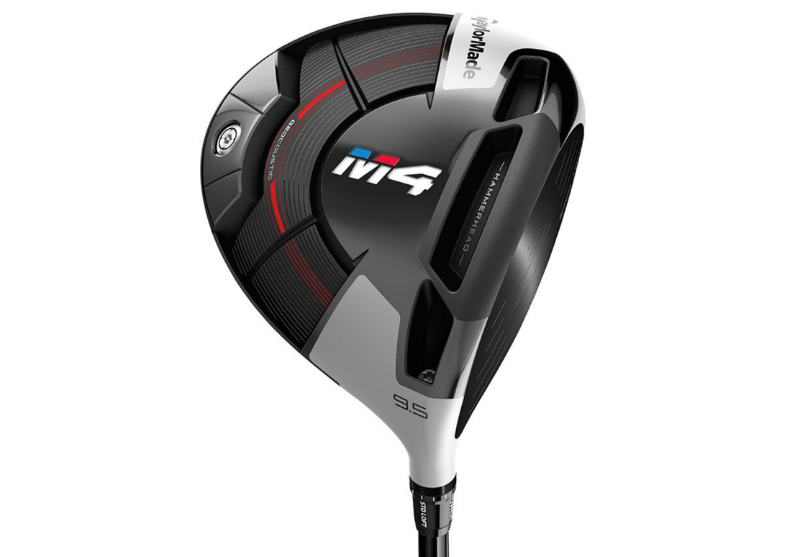

TaylorMade M4 Driver: Geocoustic Technology

Driver heads with low/back centre of gravity locations typically have low frequencies because they tend to have fairly flat soles. The new TaylorMade M4 driver’s Geocoustic sole shape allows for a low CG and larger head size, but with a more curved sole which has inherently higher frequencies, leading to better sound and feel. The Geocoustic sole design of the M4 driver freed up discretionary volume that allowed engineers to increase the overall face size and also improved sound and feel.

“We’ve sunken in that sole section – it’s more curved which allows us to stiffen it and create better sound and acoustics and by curving it it allows us to take a lot of the rib structures inside the head away, which weight we can take and put it in the back section to increase inertia. The footprint of M3 and M4, when you set it down, are identical; the difference is that the M4 face is slightly larger because we freed up a couple of CCs from the geocoustic sole and allowed us to make the face a bit bigger and is still considered 460cc.”

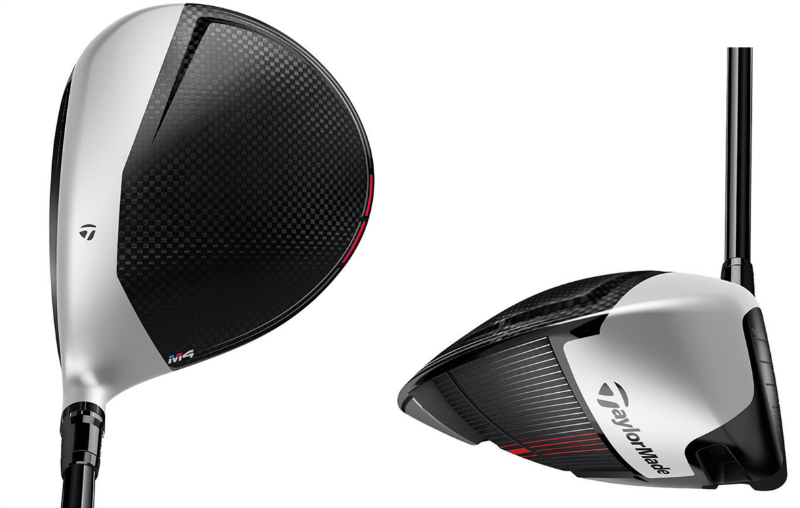

TaylorMade M4 Driver: Composite Crown

The new M4 TaylorMade driver (like the TaylorMade M3 driver) features a new matte silver front section and a raised, aerodynamic five-layer carbon composite crown. Years of research and development have culminated in the thinnest, strongest and lightest composite panels in the industry that TaylorMade have ever created.

The top crown (the raised section) is where the aerodynamics plays the biggest role, and is aimed to help you as you come through your downswing as that’s where you’re picking up speed. TaylorMade wanted to keep the flow attached as long as possible so to do that they built in a high crown for that angled plane of your downswing.

By casting it in a 5-layer carbon and raising it up they haven’t really raised the CG up at all but keep the air-flow attached longer. They also didn’t want to make the club look upright so the front section is flattened (almost like 2016 M1/M2) but were able to raise it with the carbon and improve aerodynamics.

TaylorMade M4 Driver: Redesigned Face

TaylorMade M4 Driver D-Type

Last year’s TaylorMade D-Type M2 was one of our favourite drivers, featuring slice-busting tech in a head that didn’t scream “I’m a slicer!”.

The new TaylorMade M4 D-Type (D means draw) has all the tech of the normal version, but is more heel-weighted (41g), has a slight offset and uses subtle visual cues to promote a square face at address and a more draw-biased face at impact.

“Last year we introduced the D-Type. By moving 40g of weight in to the heel and peeling the matte silver on the face back but keeping it closed, allows us 20 yards more left-bias than the standard M4, which brings them from off the golf course to on the golf course – and that’s when twist-face takes over.”

NEXT: TaylorMade M3 and M4 line up: Drivers, Irons, Fairways and Hybrids



More Reviews
New TaylorMade M3 Driver
New TaylorMade M4 Fairway
New TaylorMade M3 Fairway
New TaylorMade M4 Irons
New TaylorMade M3 Irons

• RRP £369
• Lofts: 8.5°, 9.5°, 10.5° & 12°; LH in 9.5° and 10.5°.
• Shafts: Fujikura Atmos Red shaft in 6X, 5S, 5R, 5A (Matrix Platinum White Tie in D-Type).
